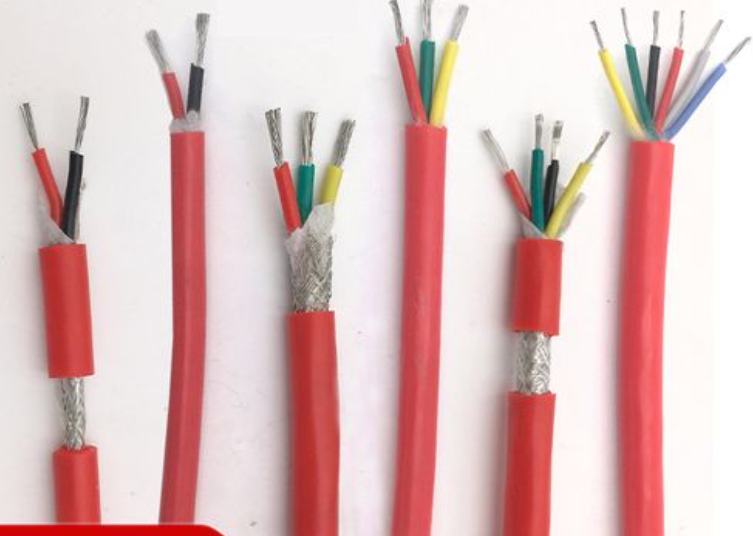

耐高溫電纜YGZF-7 × 0.35
- 電 話：18855017299,13637026879
- 郵 箱：823213582@qq.com
產品描述
耐高溫電纜YGZF-7 × 0.35
產品型號：YGZF
執行標準：企業標準.
耐高溫電纜YGZF-7 × 0.35產品特性：
1、額定電壓：300/500V
2、工作溫度：-60～+200℃
3、導 體：裸銅導體或絞合鍍錫銅線
4、絕 緣：FEP 鐵氟龍
5、護 套：硅橡膠
6、顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
耐高溫電纜YGZF-7 × 0.35特點/用途：
在長期潮濕環境中使用，電性能及防水、防霉性能優越。彎曲性能優良，*小彎曲半徑為電纜外徑16倍，可移動使用。
使用于交流額定電壓450/750V及以下各種移動式電機、鋼鐵、航空、電廠、石化等高溫環境中使用。
交貨要求：
按雙方合同協議商定，允許不小于10米的短段交貨。其數量應不超過交貨總長度的10%。
規格結構及技術參數：
芯數×截面 | 導體結構 | 絕緣厚度 | 絕緣外徑 | 護套厚度 | 平均外徑 | 20 ℃時導體直流電阻 |
3 × 0.2 | 19/0.12 | 0.25 | 1.10 | 1.30 | 5.0 | 90.4 |
3 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.50 | 5.50 | 90.4 |
4 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.20 | 5.0 | 90.4 |
5 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.20 | 5.40 | 90.4 |
5 × 0.2 | 19/0.12 | 0.25 | 1.10 | 1.50 | 6.0 | 90.4 |
6 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.2 | 5.80 | 90.4 |
7 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.2 | 5.80 | 90.4 |
8 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.20 | 6.0 | 90.4 |
10 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.20 | 6.80 | 90.4 |
12 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.40 | 7.50 | 90.4 |
19 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.40 | 8.20 | 90.4 |
2 × 0.35 | 19/0.16 | 0.25 | 1.30 | 0.80 | 4.20 | 53.1 |
3 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.10 | 5.0 | 53.1 |
4 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.20 | 5.50 | 53.1 |
5 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.30 | 6.20 | 53.1 |
6 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.40 | 6.80 | 53.1 |
7 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.40 | 6.80 | 53.1 |
8 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.40 | 7.0 | 53.1 |
9 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.50 | 7.80 | 53.1 |
10 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.50 | 8.20 | 53.1 |
12 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.50 | 8.40 | 53.1 |
14 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.50 | 8.80 | 53.1 |
19 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.50 | 9.50 | 53.1 |
2 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.20 | 5.20 | 40.1 |
3 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.20 | 5.50 | 40.1 |
4 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 6.20 | 40.1 |
5 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 6.60 | 40.1 |
6 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 7.0 | 40.1 |
7 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 7.0 | 40.1 |
8 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 7.40 | 40.1 |
9 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 8.0 | 40.1 |
10 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.50 | 8.60 | 40.1 |
12 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.50 | 8.80 | 40.1 |
14 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.50 | 9.20 | 40.1 |
17 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.60 | 10.2 | 40.1 |
19 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.60 | 10.2 | 40.1 |
2 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.10 | 5.60 | 24.60 |
3 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.40 | 6.50 | 24.60 |
4 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 7.20 | 24.60 |
5 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 7.60 | 24.60 |
6 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 8.10 | 24.60 |
7 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 8.10 | 24.60 |
8 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 8.60 | 24.60 |
10 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.60 | 10.0 | 24.60 |
12 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.60 | 10.30 | 24.60 |
14 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.60 | 10.80 | 24.60 |
19 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.80 | 12.10 | 24.60 |
2 × 1 | 19/0.26 | 0.25 | 1.80 | 1.20 | 6.0 | 20.4 |
3 × 1 | 19/0.26 | 0.25 | 1.80 | 1.20 | 6.20 | 20.4 |
4 × 1 | 19/0.26 | 0.25 | 1.80 | 1.20 | 6.80 | 20.4 |
5 × 1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 7.60 | 20.4 |
6 × 1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 8.20 | 20.4 |
7 × 1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 8.20 | 20.4 |
8 × 1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 8.60 | 20.4 |
10 × 1 | 19/0.26 | 0.25 | 1.80 | 1.60 | 10.40 | 20.4 |
12 × 1 | 19/0.26 | 0.25 | 1.80 | 1.60 | 10.80 | 20.4 |
14 × 1 | 19/0.26 | 0.25 | 1.80 | 1.60 | 11.20 | 20.4 |
19 × 1 | 19/0.26 | 0.25 | 1.80 | 1.80 | 12.60 | 20.4 |
2 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.0 | 6.50 | 12.7 |
3 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.40 | 7.60 | 12.7 |
4 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.40 | 8.20 | 12.7 |
5 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.50 | 9.10 | 12.70 |
6 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.50 | 9.80 | 12.70 |
7 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.50 | 9.80 | 12.70 |
8 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.60 | 10.60 | 12.70 |
10 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.60 | 12.20 | 12.70 |
12 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.80 | 13.0 | 12.7 |
14 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.80 | 13.60 | 12.70 |
19 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.80 | 14.90 | 12.70 |
2 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.40 | 8.40 | 7.43 |
3 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.40 | 8.80 | 7.43 |
4 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.50 | 9.80 | 7.43 |
5 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.50 | 10.60 | 7.43 |
6 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.60 | 11.6 | 7.43 |
7 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.60 | 11.6 | 7.43 |
8 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.80 | 12.80 | 7.43 |
10 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.80 | 14.80 | 7.43 |
12 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.80 | 15.20 | 7.43 |
14 × 2.5 | 19/0.41 | 0.40 | 2.80 | 2.0 | 16.40 | 7.43 |
19 × 2.5 | 19/0.41 | 0.40 | 2.80 | 2.0 | 18.0 | 7.43 |
2 × 4 | 37/0.37 | 0.40 | 3.40 | 1.40 | 9.60 | 4.81 |
3 × 4 | 37/0.37 | 0.40 | 3.40 | 1.40 | 10.20 | 4.81 |
4 × 4 | 37/0.37 | 0.40 | 3.40 | 1.60 | 11.4 | 4.81 |
5 × 4 | 37/0.37 | 0.40 | 3.40 | 1.60 | 12.40 | 4.81 |
6 × 4 | 37/0.37 | 0.40 | 3.40 | 1.8 | 13.8 | 4.81 |
7 × 4 | 37/0.37 | 0.40 | 3.40 | 1.8 | 13.8 | 4.81 |
2 × 0.35+2 × 0.14 | 19/0.16 | 7/0.16 | 1.30 | 0.95 | 1.5 | 6.0 |
2 × 0.35+4 × 0.14 | 19/0.16 | 7/0.16 | 1.30 | 0.95 | 1.4 | 6.30 |
3 × 0.2+2 × 0.4 | 26/0.10 | 52/0.10 | 1.10 | 1.35 | 0.90 | 5.20 |
3 × 0.35+2 × 0.5 | 19/0.16 | 19/0.18 | 1.30 | 1.40 | 1.20 | 6.0 |
3 × 0.75+1 × 0.5 | 19/0.23 | 19/0.18 | 1.70 | 1.40 | 1.10 | 6.30 |
4 × 0.75+2 × 0.2 | 19/0.23 | 7/0.20 | 1.70 | 1.0 | 2.0 | 8.80 |
3 × 0.35+4 × 0.1 | 19/0.16 | 7/0.15 | 1.30 | , , 0.95 | 1.30 | 6.30 |
2 × 0.35+6 × 0.14 | 19/0.16 | 7/0.16 | 1.30 | 0.95 | 1.30 | 6.30 |
6 × 0.2+2 × 0.3 | 19/0.12 | 19/0.16 | 1.10 | 1.30 | 1.20 | 6.0 |
